Integrating A 5.1 System With A 7.2 Channel Receiver

Very often I am asked the question about the compatibility of a 5.1 configuration with a 7.2 channel device. Yes, you can use a 7.2 receiver with 5.1 speakers to expand or adjust your speaker configuration as your needs and preferences change over time. It is important to understand that 5.1 and 7.2 provide different spatial sound, so considering the nuances in order to get the maximum result from combining these systems is our goal in today’s exploration.

Understanding audio channel configurations

understanding audio channel configurations

5.1 audio system

A 5.1 audio system is a typical surround sound setup in home theaters and audio systems. There are five primary channels and one subwoofer. There are front left, right, and center speakers, as well as rear left and right speakers and the subwoofer, which is in charge of generating low-frequency sounds.

The 5.1 arrangement is well-known for its versatility and is ideal for smaller-sized living spaces or bedrooms, where it can produce immersive music without overloading the room.

7.2 audio system

7.2 audio system

This system is more advanced, with seven primary channels and two subwoofers, giving a more enveloping and powerful soundscape than a 5.1 system. A 7.2 audio setup is appropriate for greater spots and dedicated home theater rooms with plenty of space, providing a more immersive audio experience. In spacious living rooms and open-concept spaces, a 7.2 surround sound setup can fill the room and create an immersive viewing experience.

Feasibility of using a 7.2 receiver with a 5.1 system

feasibility of using a 7.2 receiver with a 5.1 system

Benefits of using a 7.2 receiver

These devices can produce deeper and more impactful bass, creating a more dynamic and powerful audio experience. Many 7.2 receivers support advanced audio formats like Dolby Atmos and DTS:X, enabling you to experience object-based audio and three-dimensional sound. These formats add height channels to the audio setup, further enhancing immersion.

If you plan to expand your audio system in the future, a 7.2 receiver gives you the flexibility to do so. You can easily add additional surround speakers and make greater than 5.2 surround sound setup (e.g., rear surround channels or height speakers) when your budget and room size allow, without needing to upgrade your receiver.

Potential limitations or drawbacks

Setting up and calibrating a 7.2 system can be more complex than setting up a 5.1 system. It may require more time and technical knowledge to achieve optimal audio performance.

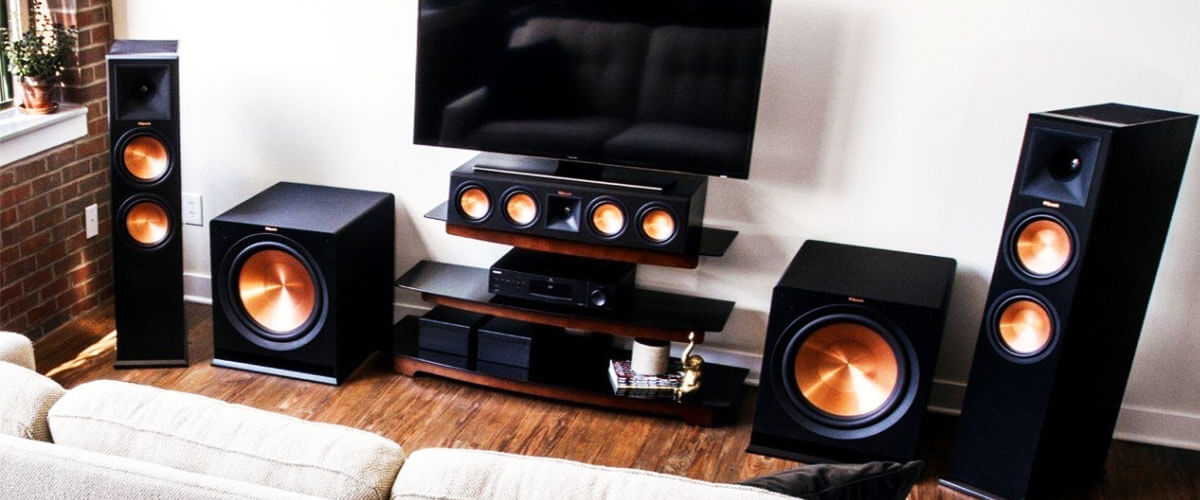

Setting up a 5.1 system with a 7.2 receiver

setting up a 5.1 system with a 7.2 receiver

Connecting the speakers and subwoofer

Position your speakers according to the standard 5.1 layout: front left, front center, front right, surround left, and surround right. The front center channel should be above or below your display. Connect each speaker to the corresponding speaker terminals on the receiver. Ensure that the polarity (+/-) of the speaker wires matches the terminals on both the receiver and the speakers. The only thing you skip is connecting 2 extra surround speakers and a subwoofer for a 7.2 receiver.

Receiver settings

receiver settings

Activate the device and navigate to the setup menu. Proceed to the audio setup or speaker setting area. Set the equipment up for a 5.1 speaker system. This will require determining each speaker’s presence and position, as well as allocating them to the relevant channels. If you want a balanced sound, you must additionally modify all speaker sizes (typically set to “small” for satellite speakers and “large” for floor-standing speakers), distance from the listening position, and specific speaker volumes.

Calibration and sound testing

Many AVRs offer room calibration systems like Audyssey, YPAO, or MCACC. These systems optimize the audio settings based on your room’s acoustics. Follow the on-screen instructions to run the calibration if desired. Then all you are left to do is to play some audio or test tones to ensure that all speakers are functioning correctly. Adjust the speaker levels and subwoofer settings as needed to achieve a balanced sound.


Do I need to buy any special cables or adapters to connect a 5.1 system to a 7.2 receiver?

To connect a 5.1 speaker system to a 7.2 receiver, you typically don’t need any special cables or adapters beyond the standard cables required for connecting speakers and subwoofers.

Is there a significant cost difference between a 5.1 and a 7.2 receiver?

5.1 receivers are typically cheaper than 7.2. The average price difference between them is about $200-$300. However, pricing for expensive models can change over time with the brand’s new product releases and market dynamics.

Can I use the extra channels in a 7.2 receiver to power speakers in another room?

Yes, you can use the extra channels in a 7.2 receiver to power speakers in another room. Many modern AV receivers, including 7.2 models, come with a feature called “Zone 2” or “Zone 3” that allows you to send audio to speakers in a different location.
